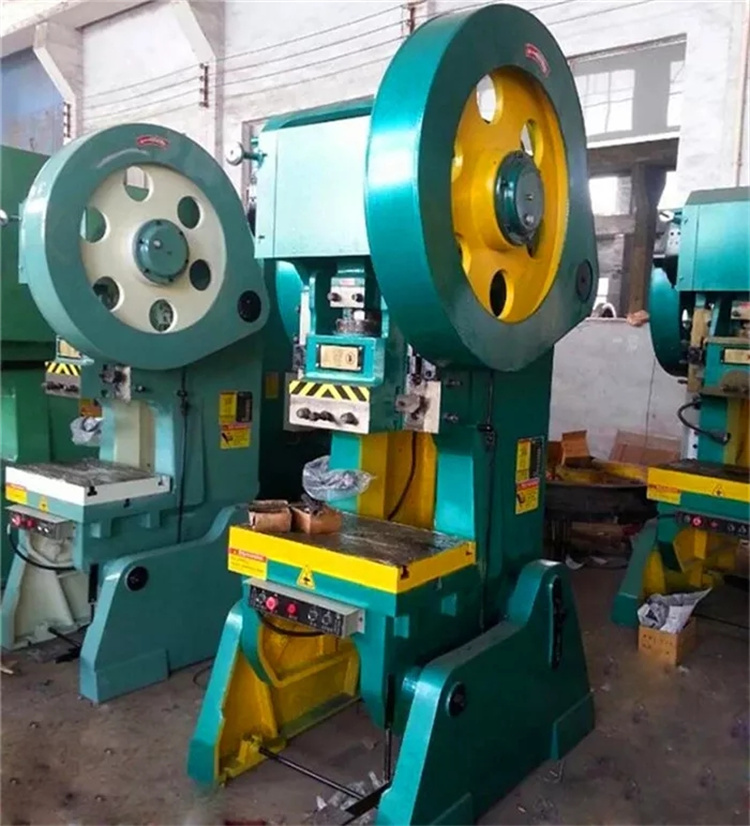

200 ton J23 c press mechanical punching machine

Үй / Өнімдер / 200 ton J23 c press mechanical punching machine

Ерекше өзгешеліктері

  • J23 series are general open-tilting power press with simple structure ,reliable performance and easy operation .J23 can adopt rigid turn-key clutch .
  • So, it is convenient for operation and maintenance .J23 can also adopt emergency stop service to make the slider block suddenly stop on the range of 0-135 degree,and the photoelectrical protector device is optional .
  • J23-100B and J23-125 are special among the J23 series .Their main body is cast in iron .The cranked axle is settled vertically .Eccentric sleeve makes easy adjustment .And there is also pneumatic friction.Therefore ,J23-100B and J23-125 enable to work with small impact and sationarity and make slider block stop at any position .

Қолданбалар

Техникалық сипаттама

Техникалық сипаттама
Units
JB23-40
JB23-63
JB23-63A
Номиналды қысым
Қ.Н
400
630
630
Nominal force stroke
мм
4
4
4
Slider stroke
мм
80
80
80
Number of slider stroke
times/min
50
50
50
Maximum die set height
мм
230
250
300
Die set height adjustment
мм
45
50
50
Distance from slider center to frame
мм
220
250
250
Worktable dimension
мм
390x630
420x650
470x750
Thickness of the worktable panel
мм
70
70
80
Size of the handle hole
(diameter x depth)
мм
φ50x70
φ50x70
φ50x70
Vertical columns distance
мм
330
320
390
Main motor
Үлгі
Y112M-4
Y132S-4
Y132S-4
Қуат
кВт
4
5.5
5.5
Maximum tilting angle of body
°
25
25
25
Overall dimension(LxWxH)
мм
1600X1100X2250
1740X1100X2560
1740X1180X2560
Салмағы
Кг
2960
3800
4300
